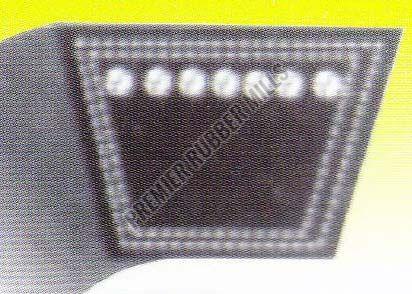

Harvester V Belt


Harvester V Belt

These are advanced vari speed belts used in Harvester Combines under severe odd conditions. These belts are designed to operate in pulley which are an assembly of movable parts.



Specifications

Section 25 30 32 36 38 40 45 50 55
Top Width (mm) 25 30 32 36 38 40 45 50 55
Thickness (mm) 13 12 15 14 18 20 20 22 22
Angle (Degrees) 30 30 30 30 30 30 30 30 30
LI to Lp (mm) 53 52 61 31 73 84 81 90 90
LI to La (mm) 82 75 94 32 113 126 125 138 138
Lp to LI (mm) -53 -52 -61 33 -73 -84 -81 -90 -90
La to LI (mm) -82 -75 -94 34 -113 -126 -125 -138 -138
La to Lp (mm) -29 -23 -33 35 -40 -42 44 -48 -48
